接口

接口：通信时使用的数据载体（特定的格式），由接口文件定义

  1. msg文件：用于话题通信，
  2. srv文件：用于服务通信
  3. action文件：用于动作通信

参数通信不使用，操作参数对象

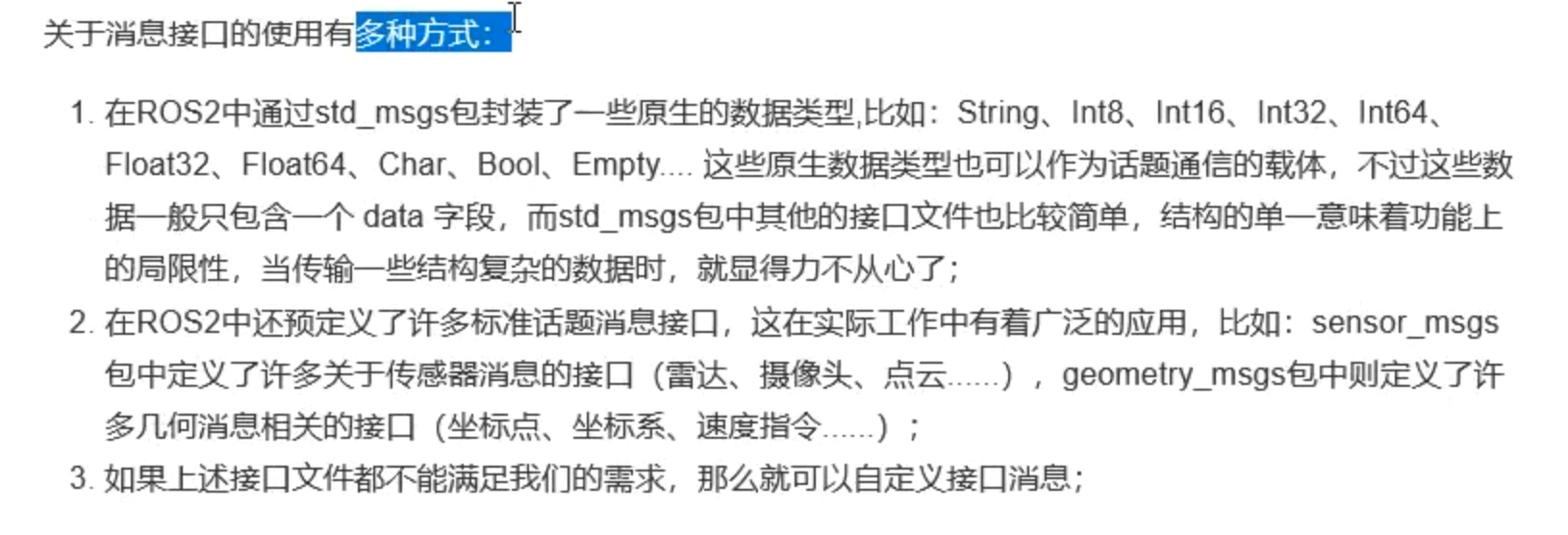

interface

话题通信：

基于发布订阅模式
除了一个节点发布，一个节点接受的形式外，ROS2话题通信其实还可以是1对n, n对1, n对n的，1对n

发布者：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
#include <rclcpp/rclcpp.hpp>
#include "std_msgs/msg/string.hpp"

using namespace std::chrono_literals;//1s 代表一秒 std::chrono::seconds(1)

class Talker :public rclcpp::Node{
public:
  //将节点命名为talker,初始化count
  Talker() :Node("talker"),count(0)){
    //打印日志，说明节点被创建
    RCLCPP_INFO(this->get_logger(),"a talker created");
    //创建一个发布者  话题为chat   队列长为10
    publisher_ = this->create_publisher<std_msgs::msg::String>("chat",10);
    //创建一个每隔1秒触发一次的定时器，并将定时器的回调函数设置为当前对象的on_timer成员函数
    timer_ =  this->create_wall_timer(1s,std::bind(&Talker::on_timer,this));
  }

private:
  //创建一个定时器的指针
  rclcpp::TimerBase::SharedPtr timer_ ;

  //创建一个发布string类型数据的成员指针
  rclcpp::Publisher<std_msgs::msg::String>::SharedPtr publisher_;

  //无符号长整型
  size_t count;

  void on_timer(){
    //创建一个String类的实例
    //局部变量！！！！每次创建一个新的，函数结束后销毁，不会资源浪费
    //也可以在函数外部预定义
    auto message = std_msgs::msg::String();
    //to_string 转化成字符串
    message.data = "hello world!" + std::to_string(count++);
    //
    RCLCPP_INFO(this->get_logger(),"发布者发布消息：%s",message.data.c_str());
    //publish：这是rclcpp::Publisher类的一个成员函数，用于发布消息。
    //这个函数接受一个消息对象作为参数，并将其发送到指定的主题上。
    publisher_->publish(message);

  }
};

int main(int argc, char ** argv)
{
  //初始化rcl客户端
  rclcpp::init(argc,argv);

  //回旋，一直执行回调函数，直到节点被关闭
  //std::make_shared<T>() 是一个模板函数，用于创建一个std::shared_ptr<T>对象。它不仅创建了一个共享指针，还同时创建了一个T类型的对象实例。
  rclcpp::spin(std::make_shared<Talker>());

  //释放资源
  rclcpp::shutdown();
  return 0;
}

订阅方

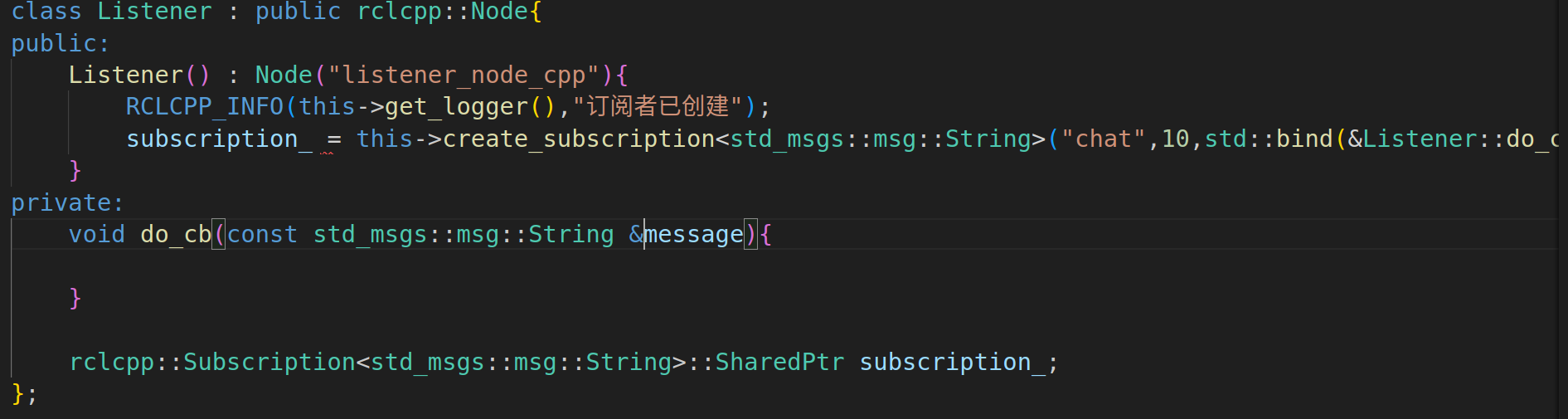

tpic-subscriber

回调函数传入参数类型不能是std_msgs::msg::String的引用
create_subscription方法传递的是消息的共享指针，而不是消息的引用。正确的参数类型应该是const std_msgs::msg::String::SharedPtr

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
#include <rclcpp/rclcpp.hpp>
#include <std_msgs/msg/string.hpp>

class Listener : public rclcpp::Node{
public:
    Listener() : Node("listener_node_cpp"){
        RCLCPP_INFO(this->get_logger(),"订阅者已创建");
        //接收到信息就执行回调函数
        //create_subscription函数的作用是创建一个订阅者（subscriber），该订阅者会监听指定主题（topic）上的消息。
        //当有消息发布到该主题时，create_subscription会将接收到的消息传递给指定的回调函数（callback function）。
        subscription_ = this->create_subscription<std_msgs::msg::String>("chat",10,std::bind(&Listener::do_cb,this,std::placeholders::_1));
    }
private:
    //注意传入消息类型
    void do_cb(const std_msgs::msg::String::SharedPtr message){
        RCLCPP_INFO(this->get_logger(),"订阅到的消息是：%s",message->data.c_str());
    }

    rclcpp::Subscription<std_msgs::msg::String>::SharedPtr subscription_;
};

int main(int argc, char** argv){
    rclcpp::init(argc,argv);
    rclcpp::spin(std::make_shared<Listener>());
    rclcpp::shutdown();
    return 0;
}

生成代码片段
左下角设置——代码片段——cpp

自定义接口文件——编译前保存！！！！

文件名首字母大写

xml文件配置

1
2
3
4
5
6
7
8
<!-- 编译依赖-->
  <build_depend></build_depend>

  <!--执行依赖 -->
  <exec_depend></exec_depend>

  <!--声明当前包所属功能包组 -->
  <member_of_group></member_of_group>

ros2 pkg list | grep -i NAME 筛选出来，不用记

CMakeLists.txt

1
2
3
4
5
6
find_package(rosidl_default_generators REQUIRED)

rosidl_generate_interfaces(
  ${PROJECT_NAME}
  "msg/Student.msg"
)

使用自定义接口文件要包含路径

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
#include <rclcpp/rclcpp.hpp>
#include <base_interfaces_demo/msg/student.hpp>

using namespace std::chrono_literals;//1s 代表一秒 std::chrono::seconds(1)
using base_interfaces_demo::msg::Student;


class TalkerStu :public rclcpp::Node{
public:
    TalkerStu() :Node("talker_stu"){
        publisher_ = this->create_publisher<Student>("Student",10);
        timer_ = this->create_wall_timer(1s,std::bind(&TalkerStu::callback,this));
    }
private:
    rclcpp::Publisher<Student>::SharedPtr publisher_;
    rclcpp::TimerBase::SharedPtr timer_;
    Student stu;

    void callback(){
        stu.name  = "lihua";
        stu.age = 12;
        stu.height = 180.0;

        publisher_->publish(stu);
        RCLCPP_INFO(this->get_logger(),"发布消息：%s,%d,%lf",stu.name.c_str(),stu.age,stu.height);
    }
};

int main(int argc,char **argv){
    rclcpp::init(argc,argv);
    rclcpp::spin(std::make_shared<TalkerStu>());
    rclcpp::shutdown();
    return 0;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
#include <rclcpp/rclcpp.hpp>
#include <base_interfaces_demo/msg/student.hpp>

using base_interfaces_demo::msg::Student;
using namespace std::chrono_literals;

class ListenerStu :public rclcpp::Node{
public:
    ListenerStu() :Node("listener_stu"){
        RCLCPP_INFO(this->get_logger(),"订阅者已创建");
        subscription_ = this->create_subscription<Student>("Student",10,std::bind(&ListenerStu::callback,this,std::placeholders::_1));

   }
private:
    rclcpp::Subscription<Student>::SharedPtr subscription_;

    void callback(const Student::SharedPtr message){
        RCLCPP_INFO(this->get_logger(),"订阅者已接收：%s,%d,%lf",message->name.c_str(),message->age,message->height);
    }

};

int main(int argc,char **argv){
    rclcpp::init(argc,argv);


    rclcpp::shutdown();
    return 0;
}

服务通信

一对多，一个服务端，多个客户端

自定义接口文件

1
2
3
请求数据
---
响应数据

在之前的基础上，修改CMakeLists.txt ——rosidl_generate_interfaces即可

服务端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
#include <rclcpp/rclcpp.hpp>
#include <base_interfaces_demo/srv/addints.hpp>

using base_interfaces_demo::srv::Addints;
using std::placeholders::_1;
using std::placeholders::_2;

class AddIntServer :public rclcpp::Node{
public:
  AddIntServer() :Node("add_int_server"){
    RCLCPP_INFO(this->get_logger(),"服务端节点创建成功");
    service_ = this->create_service<Addints>("add_ints",std::bind(&AddIntServer::sum,this,_1,_2));
  }
private:
  rclcpp::Service<Addints>::SharedPtr service_;
  void sum(const Addints::Request::SharedPtr req,const Addints::Response::SharedPtr res){
    res->sum = req->num1 + req->num2;
    RCLCPP_INFO(this->get_logger(),"%d + %d = %d",req->num1,req->num2,res->sum);
  }

};

int main(int argc,char **argv){
  rclcpp::init(argc,argv);

  rclcpp::spin(std::make_shared<AddIntServer>());
  rclcpp::shutdown();
  return 0;
}

测试：
ros2 service call /add_ints base_interfaces_demo/srv/Addints “{'num1':10,'num2':30}"

rclcpp::ok();
rclcpp::get_logger(); 不依赖于context

客户端

main函数中需要判断提交参数是否正确
自定义节点类中要包括 判断是否连接到服务端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
#include <rclcpp/rclcpp.hpp>
#include <base_interfaces_demo/srv/addints.hpp>

using base_interfaces_demo::srv::Addints;
using namespace std::chrono_literals;

class AddIntClient :public rclcpp::Node {
public:
    AddIntClient() :Node("add_int_client"){
        RCLCPP_INFO(this->get_logger(),"客户端节点创建");
        client_ = this->create_client<Addints>("add_ints");
    }
   //连接服务器
   bool connect_server(){
      //以1s为超时时间，连接不上，一直连接
        while(!client_ -> wait_for_service(1s)){
            //rclcpp::ok()函数来检查ROS 2节点是否仍在运行
            //如果节点被请求停止（例如，通过按下Ctrl+C），rclcpp::ok()会返回false
            if(!rclcpp::ok()){
                RCLCPP_INFO(rclcpp::get_logger("rclcpp"),"强制退出");
                return false;
            }
            RCLCPP_INFO(rclcpp::get_logger("rclcpp"),"服务器连接中");
        }
        return true;
   }
    //发送请求函数
    //参数两个整形数据 返回服务器处理后的结果

    rclcpp::Client<Addints>::SharedFuture send_request(int num1,int num2){
        auto request = std::make_shared<Addints::Request>();
        request->num1 = num1;
        request->num2 = num2;
       //rclcpp::Client<base_interfaces_demo::srv::Addints>::SharedFuture
       //async_send_request(std::shared_ptr<base_interfaces_demo::srv::Addints_Request> request)

        return client_->async_send_request(request);
    }
private:
    rclcpp::Client<Addints>::SharedPtr  client_;
};

int main(int argc,char **argv){
    if(argc != 3){
        RCLCPP_ERROR(rclcpp::get_logger("rclcpp"),"请提交两个整型数据");
        return 1;
    }


    rclcpp::init(argc,argv);

    auto client = std::make_shared<AddIntClient>();

    bool flag = client->connect_server();
    //判断是否链接上服务器
    if(!flag){
        RCLCPP_INFO(rclcpp::get_logger("rclcpp"),"服务器连接失败");
        return 0;
    }
    //调用请求提交函数，接收并处理响应结果
    auto future = client->send_request(atoi(argv[1]),atoi(argv[2]));

    //处理响应
    if(rclcpp::spin_until_future_complete(client,future) == rclcpp::FutureReturnCode::SUCCESS){
        RCLCPP_INFO(client->get_logger(),"响应成功!sum = %d",future.get()->sum);


    }else{
        RCLCPP_INFO(client->get_logger(),"sd");
    }

    rclcpp::shutdown();
    return 0;
}

动作通信

自定义接口文件

1
2
3
4
5
请求数据
---
响应数据
---
反馈数据

xml：

1
2
3
<!-- action补充-->
  <buildtool_depend>rosidl_default_generators</buildtool_depend>
  <depend>action_msgs</depend>

CMakeLists.txt补充rosidl_generate_interfaces

服务端

ros2 action send_goal /get_sum base_interfaces_demo/action/Progress -f "{'num':10}"

rclcpp::Rate 的构造函数接受一个频率值（单位为 Hz），表示每秒执行的次数。例如：

1
rclcpp::Rate rate(1.0);  // 每秒执行 1 次，即每秒运行一次循环

rate.sleep() 方法来暂停代码的执行，直到下一次循环的时间点。如果当前循环提前完成，rate.sleep() 会阻塞当前线程，直到达到预期的频率。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
#include <rclcpp/rclcpp.hpp>
#include <rclcpp_action/rclcpp_action.hpp>
#include <base_interfaces_demo/action/progress.hpp>

using base_interfaces_demo::action::Progress;
using std::placeholders::_1;
using std::placeholders::_2;

class ActionService :public rclcpp::Node{
public:
  ActionService() :Node("action_service"){
    RCLCPP_INFO(this->get_logger(),"服务器已创建!");

    //rclcpp_action::Server<ActionT>::SharedPtr
    //create_server<ActionT, NodeT>
    //(NodeT node,
    //const std::string &name,
    //rclcpp_action::Server<ActionT>::GoalCallback handle_goal,
    //rclcpp_action::Server<ActionT>::CancelCallback handle_cancel,
    //rclcpp_action::Server<ActionT>::AcceptedCallback handle_accepted,
    // const rcl_action_server_options_t &options = rcl_action_server_get_default_options(), rclcpp::CallbackGroup::SharedPtr group = nullptr)
//All provided callback functions must be non-blocking.
    server_ = rclcpp_action::create_server<Progress>(
      this,
     "get_sum",
     std::bind(&ActionService::handle_goal,this,_1,_2),
     std::bind(&ActionService::handle_cancel,this,_1),
     std::bind(&ActionService::handle_accepted,this,_1)
     );
  }

private:
  rclcpp_action::Server<Progress>::SharedPtr server_;
  //处理提交的目标值，注意参数
  rclcpp_action::GoalResponse handle_goal(const rclcpp_action::GoalUUID& uuid,std::shared_ptr<const Progress::Goal> goal){
    //判断提交的数字是否大于1，大于接受，小于拒绝
    if(goal->num <= 1){
      RCLCPP_INFO(this->get_logger(),"提交数据小于1");
      return rclcpp_action::GoalResponse::REJECT;
    }
    RCLCPP_INFO(this->get_logger(),"提交数据合法");
    return rclcpp_action::GoalResponse::ACCEPT_AND_EXECUTE;
  }

  //处理取消请求
  //客户端可发送取消请求
  rclcpp_action::CancelResponse handle_cancel(std::shared_ptr<rclcpp_action::ServerGoalHandle<Progress>> goal_handle){
    RCLCPP_INFO(this->get_logger(),"任务已取消");
    return rclcpp_action::CancelResponse::ACCEPT;
  }

  //生成连续反馈和最终响应
  void execute(std::shared_ptr<rclcpp_action::ServerGoalHandle<Progress>> goal_handle){
    //生成连续反馈给客户端 goal_handle->publish_feedback()
    //void publish_feedback(std::shared_ptr<base_interfaces_demo::action::Progress_Feedback> feedback_msg)
    //首先获取目标值，遍历然后累加，每循环一次计算进度，作为连续反馈发布
    int num = goal_handle->get_goal()->num;
    int sum=0;
    double progress;
    auto feedback = std::make_shared<Progress::Feedback>();
    auto result = std::make_shared<Progress::Result>();

    //设置休眠,1s一次
    rclcpp::Rate rate(1.0);
    for(int i = 1;i<=num;i++){
      sum+=i;
      progress = i / (double)num;
      feedback->progress = progress;
      goal_handle->publish_feedback(feedback);
      RCLCPP_INFO(this->get_logger(),"连续反馈中，进度：%.2f",progress);

      //判断是否接收到了取消请求
      //true——接收到取消请求
      if(goal_handle->is_canceling()){

        //canceled(std::shared_ptr<base_interfaces_demo::action::Progress_Result> result_msg)
        //取消时发送最终结果
        result->sum = sum;
        goal_handle->canceled(result);
        RCLCPP_INFO(this->get_logger(),"反馈取消，结果：%d",sum);

        return ;
      }
      rate.sleep();
    }

    //生成最终响应结果 goal_handle->succeed()
    //void succeed(std::shared_ptr<base_interfaces_demo::action::Progress_Result> result_msg)
    if(rclcpp::ok()){
      result->sum = sum;
      goal_handle->succeed(result);
      RCLCPP_INFO(this->get_logger(),"最终响应结果：%d",sum);
    }
  }
  void handle_accepted(std::shared_ptr<rclcpp_action::ServerGoalHandle<Progress>> goal_handle){
    //新建子线程处理耗时的主逻辑实现
    std::thread(std::bind(&ActionService::execute,this,goal_handle)).detach();
  }
};

int main(int argc,char **argv){
  rclcpp::init(argc,argv);
  rclcpp::spin(std::make_shared<ActionService>());

  rclcpp::shutdown();
  return 0;
}

客户端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
#include <rclcpp/rclcpp.hpp>
#include <rclcpp_action/rclcpp_action.hpp>
#include <base_interfaces_demo/action/progress.hpp>

using base_interfaces_demo::action::Progress;
using namespace std::chrono_literals;
using std::placeholders::_1;
using std::placeholders::_2;

class ActionClient :public rclcpp::Node{
public:
   ActionClient() :Node("action_client"){
    RCLCPP_INFO(this->get_logger(),"Action 客户端已创建");
    //rclcpp::CallbackGroup::SharedPtr group = nullptr)
    client_ = rclcpp_action::create_client<Progress>(this,"get_sum");
   }

    void send(int num){
        //1.连接到服务器
        if(!client_->wait_for_action_server(10s)){
            RCLCPP_ERROR(this->get_logger(),"服务器连接失败！");
            return ;
        }

        //2.发送请求

        auto goal = Progress::Goal();
        auto options = rclcpp_action::Client<Progress>::SendGoalOptions();

        goal.num = num;

        options.feedback_callback = std::bind(&ActionClient::feedback_callback,this,_1,_2);
        options.goal_response_callback = std::bind(&ActionClient::goal_response_callback,this,_1);
        options.result_callback = std::bind(&ActionClient::result_callback,this,_1);

        auto future = client_->async_send_goal(goal,options);

    }

    void feedback_callback(rclcpp_action::ClientGoalHandle<Progress>::SharedPtr goal_handle,const std::shared_ptr<const Progress::Feedback> feedback){
        double progress = feedback->progress;
        RCLCPP_INFO(this->get_logger(),"进度：%lf",progress);
    }

    //处理关于目标值的服务端响应
    void goal_response_callback(std::shared_future<rclcpp_action::ClientGoalHandle<Progress>::SharedPtr> goal_handle){
        //响应成功返回指针,注意！！！
        if(!goal_handle.get()){
            RCLCPP_INFO(this->get_logger(),"请求被拒绝");
        }else{
            RCLCPP_INFO(this->get_logger(),"请求成功");
        }
    }

    void result_callback(const rclcpp_action::ClientGoalHandle<Progress>::WrappedResult &result){
        //result.code 状态码判断最终结果状态 状态玛封装在rclcpp_action::ResultCode::
        if(result.code == rclcpp_action::ResultCode::SUCCEEDED){
            RCLCPP_INFO(this->get_logger(),"成功！，结果：%d",result.result->sum);
        }else{
            RCLCPP_ERROR(this->get_logger(),"失败!");
        }
    }

private:
    rclcpp_action::Client<Progress>::SharedPtr client_;

};

int main(int argc,char **argv){
    if(argc !=2 ){
        RCLCPP_ERROR(rclcpp::get_logger("rclcpp"),"请提交一个整型数据！");
        return 1;
    }

    rclcpp::init(argc,argv);
    auto node = std::make_shared<ActionClient>();

    node->send(atoi(argv[1]));

    rclcpp::spin(node);
    rclcpp::shutdown();
    return 0;
}

参数通信

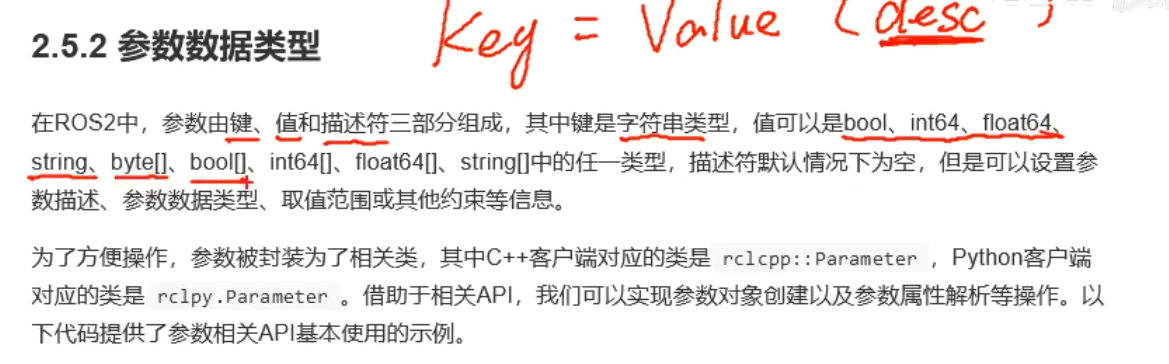

parameter-type

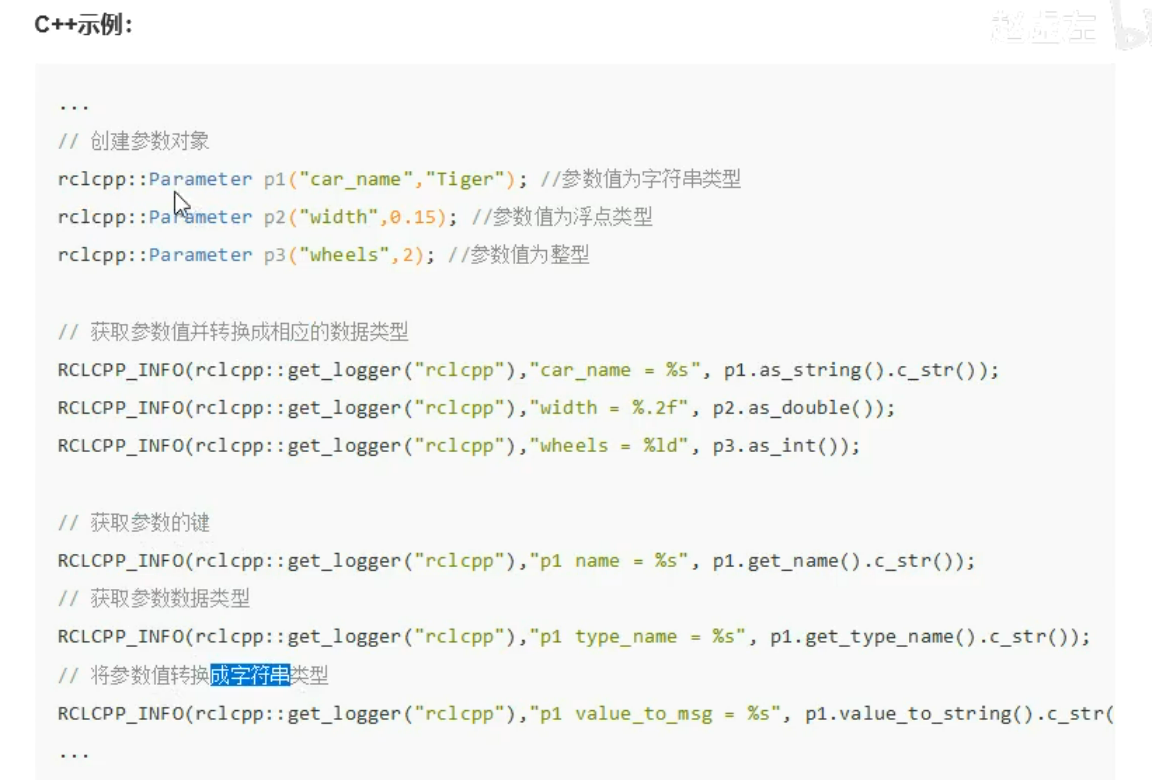

param-example

ros2 param list
查询参数
ros2 param get my_server wheels
查询参数值

服务端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
#include <rclcpp/rclcpp.hpp>

class MyServer :public rclcpp::Node{
public:
  //如果允许删除参数，需要通过NodeOptions配置
  MyServer() :Node("my_server",rclcpp::NodeOptions().allow_undeclared_parameters(true)){

  RCLCPP_INFO(this->get_logger(),"参数服务器已建立");
  }

  void declare(){
    RCLCPP_INFO(this->get_logger(),"------------增-----------");
    this->declare_parameter("car_type","tiger");
    this->declare_parameter("width",1.5);
    this->declare_parameter("wheels",5);

    //set也可以，但必须rclcpp::NodeOptions().allow_undeclared_parameters(true)
    this->set_parameter(rclcpp::Parameter("height",1.8));
  }

  void get(){
    RCLCPP_INFO(this->get_logger(),"------------查-----------");
    //指定
    auto car = this->get_parameter("car_type");
    RCLCPP_INFO(this->get_logger(),"key = %s , value = %s",car.get_name().c_str(),car.as_string().c_str());
    //一些
    auto params = this->get_parameters({"car_type","width","wheels"});
    for(rclcpp::Parameter n : params){
      RCLCPP_INFO(this->get_logger(),"key = %s , value = %s",n.get_name().c_str(),n.value_to_string().c_str());

    //判断是否含有
      RCLCPP_INFO(this->get_logger(),"是否包含%s? %d",n.get_name().c_str(),this->has_parameter(n.get_name()));
    }
  }
  void update(){
    RCLCPP_INFO(this->get_logger(),"------------改-----------");

    this->set_parameter(rclcpp::Parameter("width",1.4));
    RCLCPP_INFO(this->get_logger(),"width = %lf",this->get_parameter("width").as_double());

  }
  void del(){
    RCLCPP_INFO(this->get_logger(),"------------删-----------");
    this->undeclare_parameter("car_type");

    RCLCPP_INFO(this->get_logger(),"car_type还存在吗? %d",this->has_parameter("car_type"));
  }
private:
};

int main(int argc,char **argv){
  rclcpp::init(argc,argv);

  auto node = std::make_shared<MyServer>();
  node->declare();
  node->get();
  node->update();
  node->del();

  rclcpp::spin(node);
  rclcpp::shutdown();
  return 0;
}

客户端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
#include <rclcpp/rclcpp.hpp>
#include <vector>

using namespace std::chrono_literals;

class MyClient :public rclcpp::Node{
public:
    MyClient() :Node("my_client"){
    RCLCPP_INFO(this->get_logger(),"参数客户端已建立");
    client_ = std::make_shared<rclcpp::SyncParametersClient>(this,"my_server");

    }

    bool connect_server(){

        while(!client_->wait_for_service(1s)){

            if(!rclcpp::ok()){
                RCLCPP_INFO(this->get_logger(),"中断!");
                return false;
            }

            RCLCPP_INFO(this->get_logger(),"连接中");
        }

        return true;
    }

    void get(){
        RCLCPP_INFO(this->get_logger(),"获取");

        //获取单个
        std::string car_name =client_->get_parameter<std::string>("car_type");
        double width = client_->get_parameter<double>("width");
        RCLCPP_INFO(this->get_logger(),"car_name:%s",car_name.c_str());
        RCLCPP_INFO(this->get_logger(),"width:%lf",width);


        //获取多个
        auto params = client_->get_parameters({"car_type","width"});
        for(rclcpp::Parameter  n : params){
            RCLCPP_INFO(this->get_logger(),"key = %s , value = %s",n.get_name().c_str(),n.value_to_string().c_str());

        }

        //判断是否含有_IN
        RCLCPP_INFO(this->get_logger(),"car_type? %d",client_->has_parameter("car_type"));
    }
     void update(){
        RCLCPP_INFO(this->get_logger(),"修改");
        client_->set_parameters({rclcpp::Parameter("car_type","pig"),
        rclcpp::Parameter("length","5.0")});//不存在也可以，但要保证服务端那个参数

        RCLCPP_INFO(this->get_logger(),"length? %d",client_->has_parameter("length"));
    }
private:
    rclcpp::SyncParametersClient::SharedPtr client_;

};

int main(int argc,char **argv){
    rclcpp::init(argc,argv);
    auto note = std::make_shared<MyClient>();

    bool flag = note->connect_server();

    if(!flag == true){
        return 0;
    }
    note->get();
    note->update();
    note->get();
    rclcpp::spin(note);
    rclcpp::shutdown();
    return 0;
}

出现乱码：C语言字符串输出不兼容

上一页
2025-09-20 22:21:44 #ros2
下一页
